5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine

Product Categories

Hubei Runli Special Automobile Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

MOQ : 1

Price : 21450

Payment Terms : T/T

Supply Ability : 500

Delivery Time : 20

Packaging Details : Nude package

Chassis : EQ1060

Warranty : 1 Year

Forward Shift Number : 5

Fuelcapacity : 150 liters

Core Components : Engine

Horsepower : 90HP 120HP

Emissionstandard : Euro 3 Euro 6

Model : Standard

Segement : Light truck

Drivetype : 4x2

Steering Wheel : Customer's Requirement

Wheelbase : 3300mm

Storage : Water

Contact Now

Parameter	Value
Chassis Manufacturer	DFAC Chassis with air condition
Chassis model	EQ1060
Cab	Flatting cab (White)
Drive	Left hand
Brake	Air brake
Transmission	5 speed
Front axle Load	1800 kgs
Rear axle Load	3500 kgs
Vehicle frame	Side beam frame
Overall Dimension	594020002700mm
Rated Payload	3000Kg
Kerb Weight	3580Kg
Engine Specifications
Model/Rated Power	YC4FA120-33 / 88KW / 120HP
Emission standard	Euro III
Manufacturer	Yuchai engine co., ltd
Type & Size of Tyre	7.00R16
Power take-off	Yes
Front/rear overhang (mm)	1055/1577
Departure angle	27/15
Suspension	front shock absorber
Leaf spring	(Number of front plate springs)-8 (Number of front plate springs)9+5
Number of axles	2
Number of tires	6+1
Spare tire rack	Yes
Track (mm)	1525/1498
Driving type	4*2
Wheel Base	3308mm
Maximum torque	345N·m
Max Speed	90Km/h
Brakes	Drum

LPG tank specification
Tank material		Q345R (Standard GB713-2008)
Tank volume		5000 liters
Tank Designed thickness	End cover	12 MM
	Tank body	10MM
Designed pressure		1.77MPa
Testing water pressure		2.66MPa
Air tight test pressure		1.77MPa
Heat treatment		620℃
Rust thickness		1mm
Use Years		20 years

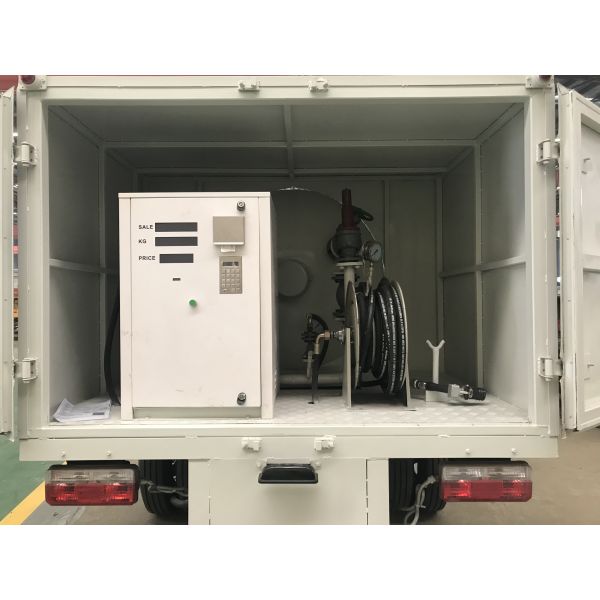

LPG dispenser	Function	Mobile refueling to inflate LPG trucks or storage tanks
	Flow rate	15 cbm/h
	Max working pressure	2.5MPa
LPG pump	Function	Unloading gas
	Flow rate	15 cbm per hour
	Working pressure	2.5MPa
Liquid level meter	Type	Uqz2.5-1500 (Floating ball type)
List of nozzles	Pressure meter	DN50 A412F-25-22
	Safe valve	Build in type
	Thermometer	DN50
	Liquid phase	Q41F-25P-8B/9B
	Gas phase	DN25
	Sewage draining exit	Q41F-25P-8B/9B

5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
